Since the Park Nicollet Health Services and KFI Engineers partnership began in the year 2000, projects have included mechanical, electrical and plumbing design, studies, code reviews, peer reviews and commissioning. Following are a few of the most recent:
Methodist Hospital Retrocommisisoning

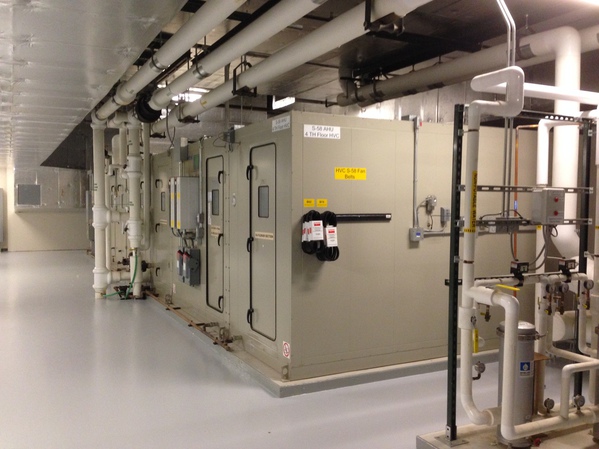

KFI is currently engaged in a retrocommissioning project of 48 AHUs at Methodist Hospital. There are three primary objectives: 1) Standardize sequences of operation and AHU BAS graphics, 2) Correct building pressurization issues, and 3) Analyze current ventilation code requirements and reset ventilation values to meet both the ventilation and building pressurization requirements. One of the challenges with this project is that the hospital will remain entirely operational during the process, so the testing and adjusting of systems is being coordinated with critical staff to minimize any disturbances to the space. In addition, there are multiple BAS platforms in the hospital, which requires additional coordination between multiple providers to implement changes across all platforms. The project is currently in the midst of some sequence of operations revisions to begin the re-balancing portion of the project to address building pressure and ventilation changes.
Park Nicollet Plymouth Clinic

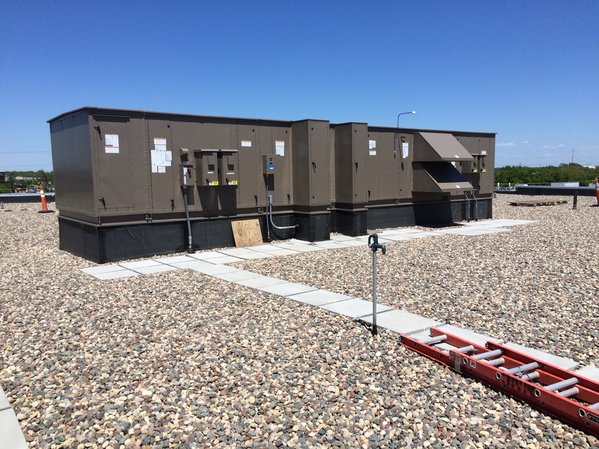

For this 60,000 square-foot clinic in Plymouth, MN, notable space types ranged from primary care (family medicine, pediatrics, internal medicine), to specialty care, urgent care, radiology, lab and physical therapy. And commissioned systems included three variable volume packaged RTUs, 100 VAV units, boiler plant, exhaust systems and lighting controls.
Park Nicollet Methodist Hospital Women’s Clinic Commissioning
The 5th floor Women’s Clinic remodel at Methodist Hospital needed HVAC commissioning services, including construction inspections, TAB review and functional testing for one AHU, 51 VAVs and several exhaust systems. This project was completed in Spring 2014.

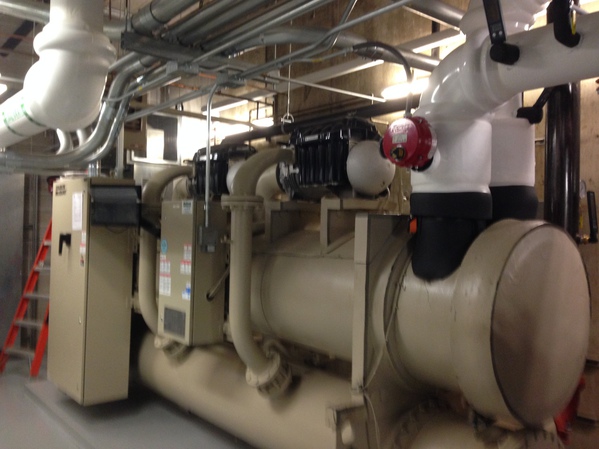

3900 Building Chiller Design and Commissioning
A feasibility study informed the replacement of three 100-ton chillers and revising controls. Additional services included overseeing administration of the design-build project, and full commissioning of the plant.
Maple Grove Specialty Center Commissioning
This two-phase commissioning project is currently in progress (90,000 square feet of new construction and 30,000 square feet of remodel). Systems commissioned include 5 VAV AHUs, 180 VAVs, cooling plant (3 chillers, 2 cooling towers and a dry cooler), boiler plant, 2 surgery suites, generator and ATS, and lighting controls.
Details for individual facilities are above, and some projects, like Maple Grove Specialty Center commissioning, remain ongoing.
